Product
|
|
| With our advance manufacturing system including the sophisticated designs and processing equipments, we have met the customer needs and make it into reality. |
|
|
|
 |
 |
 |
|
|
|
 Part for a ticket machine
Automatic gate part
Information devices part
Semiconductor devices part
Medical appliances part
Part for the automobile
Communication machine skillful part
Package and also system part |
 |
|
 |
|
|
|
|
Surface treatment / assembly / silk printing
Simulation processing by the solid design. (3D)
WEEE Relative Proposal.
Limited production of diversified products. |
|
|
|
|
|
 |
|
 |
|
 |
|
|
|
 |
|
Part for a Ticket Machine |
|
|
|
|
|
|
|
 |
Stainless guide |
 |
|
|
Sheet copper nut rivet |
Aluminum ｔ4 Laser cut |
System part |
|
|
Stainless guide hinge assembly |
Electron devices base |
Stainless steel Shashih |
|
|
 |
|
|
|
 |
|
|
|
 |
|
|
|
|
|
|
|
|
Information devices Part |
|
|
|
|
|
|
|
 |
 |
 |
|
|
Marker
Carved seal |
Server Shashih |
Coating
Silk printing |
|
|
Electron devices frame |
Cooling unit |
Power supply case |
|
|
Laser cut
Marking |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Automatic gate Part |
|
|
|
|
|
|
|
Automatic gate cover |
 |
 |
|
|
Base |
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Semiconductor devices Part |
|
|
|
|
|
|
|
 |
Fixation metal fittings |
Stainless steel PAN |
|
|
Part metal fittings |
 |
Brass plate |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Medical Appliances Part |
|
|
|
|
|
|
|
Aluminum welding |
Frame
(iron plating) |
Plate |
|
|
|
|
|
|
|
|
|
|
|
|
|
Part for the Automobile |
|
|
|
|
|
|
|
Simple metallic mold |
Simple metallic mold |
Simple metallic mold |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Package and also System Part |
|
|
|
|
|
|
|
Communication devices |
Power supply case |
Control unit base |
|
|
Control unit panel |
Automatic machine part cover |
Cover for ATC |
|
|
Black anodized aluminum |
Fixation metal fittings |
plate |
|
|
|
|
|
|
|
|
|
|
|
|
|
Sheet metal Case Assembly |
|
|
We can produce various sizes of case from small to bigger one like the Uninterruptible Power Supply Case. Our company correspond to various industrial equipment, telecommunication equipments, banking terminals, computers, medical equipments, amusement machines, and multifunctional information terminals that includes many things. |
|
|

Power-supply
unit housing(Big) |

Power-supply
unit housing(Small) |
Medicine Storage |
|
|
|
|
|
|
|
|
|
|
| ■Acceptable Material and Board Thickness for Processing |
|
●Iron related SPCC,SECC, surface treated steel plate, etc. t0.05〜t20.0
●Spring steel board SK-5 etc.
●SUS related 304，430 ｔ0.3〜t9.0
Board , flat bar, angle, and channel materials.
●copper C1020P ： No oxygen copper(old name OFCup)
C1100P ： tough pitch copper(old name TCup)
●brassC2801P：(old name BsP3)t0.1〜t3.0
Board, flat bar, angle, and channel materials.
●Phosphorus bronze for spring 521OP：（old name PBSP）
●Beryllium copper t0.1〜t1.0
●Aluminum Series A1100P.
A5052：52S（5000 series.）A6063：63S A2017 about t0.5〜t5.0
Board, flat bar, angle, and channel materials.
●Titanium about 0.5〜2.0
●Magnesium about 0.5〜2.0
●Resin series Teflon, MC nylon, Delrin, Juracon, and hard urethane etc.
|
| ■Acceptable Process |
|
●Press, Turret Punch, Laser, Bend, Welding (YAG, TIG, Spot, Gas, Low Applied)
●Chrome plating, various platings including non-electrolytic plating, anodized aluminum, hard anodized aluminum, buff-finished, taft ryde, TiCN, TiN, other various ion plating, etching, and blast processing.
●Baking finish, powder coating, and silk printing. |
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
|

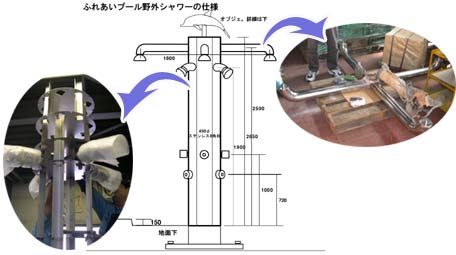

We build the brilliantly shining sprinkler for adults and for children and create the faucet part separately. The bending process technique shone to build the pillar of 8 corner pillars. |
|
 |
|
|
1.Design/production
|
|
|
 |
|
|
|
 |
|
 |
 |
|
|
2.Assembly/inspection
|
|
|
|
|
|
|
|
 |
|
 |
 |
|
|
3.Installation
|
|
|
|
〜Completion〜
|
|
【Mibu-machi Commerce and Industry Association, Kurukawa Village, Fure-ai Pool】
http://mibu.shokokai-tochigi.or.jp/3chiiki/html/con4_2.html
【Mibu-machi official homepage for Fure-ai Pool Information】
http://www.town.mibu.tochigi.jp/map/index.html |
|
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
